Review Tempat Jual Total Station Efix ETSR4 di Palembang

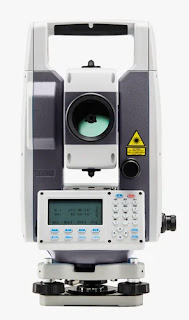

Total Station Efix ETSR4
TECHNICAL SPECIFICATIONS
1”
Absolute, continuous, diametrical
(horizontal and vertical)
Display resolution 0.1”/ 1”/ 5”/ 10” optional
Coding dial diameter 79 mm
Resolution 0.1 mm
EDM type Coaxial
Magnification 30 x
Field of view 1°30’
Tube length 154 mm
Reticle illumination 4 brightness levels
Laser dot size 2.5 mm
Laser type Red visible laser
Carrier 0.650~0.690 μm
Imaging method Ortho-imaging
Resolving power 3”
Focusing range 1.4 m/ 4.59 ft to infinity
Compensator range ±3'
Measurement method
Single Prism: 5000 m
Reflective sheet: 1000 m
Non-Prism: 1000 m (1)
Range
Prism fine: typical 0.3 s
Prism tracking: typical 0.1 s
Non-Prism: typical 0.3~3 s
Measurement time
Single Prism: 2 mm + 2 ppm
Reflective sheet: 3 mm + 2 ppm
Non-Prism: 3 mm + 2 ppm (2)
Accuracy
Single Prism: Class 2
Reflective sheet: Class 2
Non-Prism: Class 3R
Laser output
Compensation method
Compensator setting
accuracy
Effective aperture of 45 mm
objective lens
Alphanumeric with backlight 28-key
double-sided keyboard
Keyboard
Display 2.6-inch 6-line HD digital LCD screen
Accuracy ±1.5 mm at 1.5 m instrument height
Double photoelectric electronic
compensation
Angular measurement Communication Stronger signal , easy to fix.
Battery
Environment
Size and weight
Distance measurement
Telescope
Laser plummet
Display and keyboard
*All specifications are subject to change without notice.
(1) Kodak gray 90% reflective (0.9 m to >1000 m).
(2) Object in shade, sky overcast, Kodak Gray Card (90% reflective).
(3) Battery life is subject to operating temperature.
Angular accuracy 2” Ports 1 x USB flash drive
Charging time About 3 hours
Ingress protection IP55
Internal storage 4 MB ( ready for 30,000 points )
Up to 32 GB
( ready for 245,760,000 points )
External storage
Continuousdistance/angle: 8 hours
Continuousangle-only: 16 hours
Operating time
on internal battery (3)
-20°C to +50°C
(-4°F to +122°F)
Working temperature
range
160 mm x 150 mm x 330 mm
(6.3 in x 5.9 in x 13.0 in)
Size
Rechargeable lithium battery
3100 mAh, DC 7.4 V
Li-ion battery capacity
Bluetooth V 2.0 ®
Weight 5.2 kg
Stronger signal , easy to fix.
EASY-TO-USE REFLECTORLESS TOTAL STATION
1000m Reflectorless 2” Angular accuracy HD LCD Screen
USB Interface & Bluetooth Data communication
The ETSR4 is a universal, easy-to-use, reflectorless total station that offers longer
range, higher accuracy and faster measurement speeds. With a reflectorless
measurement range of up to 1000 metres and angular accuracy of up to 2", the
ETSR4 is designed to handle even the most complex surveying tasks with ease.
EFIX total station features built-in Bluetooth technology for real-time communication
and control with field survey software. Its USB flash drive interface for easy data
transfer eliminates the difficulties of cumbersome data management. The
high-resolution LCD screen and 28-key alphanumeric keypad, together with a variety
of built-in measurement programs, provide a clear and intuitive user interface that is
easy to understand and operate.
The replaceable battery is designed for up to 8 hours continuous use, so operators
can work all day without worrying about losing power in the field. From land
surveying, cadastral and property mapping to road and utility surveying, the ETSR4 is
the perfect solution for surveying and construction professionals.
Ultra-fast measurement in just 0.3 seconds
Reflectorless measurement range of up to 1000 m for greater flexibility
and convenience in the field
Distance measurement up to 5000 m with a prism, enabling accurate
long-distance measurements
HIGH EDM PERFORMANCE
Store up to 30,000 points in the internal memory allowing for ample
data storage capacity
Recording capacity up to 245,760,000 points with external 32 GB USB
flash drive expansion storage. This enables efficient data management
and easy transfer of road data for stakeout in .csv, .dat, .txt formats
with just one step
Integrated Bluetooth® connectivity supports real-time communication
and control with mobile devices via field survey software
CONVENIENT DATA COMMUNICATION
Integrated HD LCD screen and 28-key double-sided backlit
alphanumeric keyboard provide a clear and user-friendly interface for
easy operation and quick access to measurement data
Increase productivity and efficiency for cost-effective staking, layout,
site, and field survey projects with a range of built-in measurement
programs, including REM, MLM, Z coordinate, area, point-to-line, and
road measurements
RICH AND INTUITIVE ONBOARD SOFTWARE
Built to withstand harsh jobsite environments with a rugged industrial
design that delivers reliable measurements
Built-in laser makes total station setup quick and easy, even in difficult
lighting conditions
Integrated one-piece CCD with horizontal and vertical axes, equipped
with a dual dense ball bearing axis system that ensures smooth operation
Extremely low power and Class 2 laser for optimum operational safet
